University of Cincinnati
ECE&CS Department
EE-611
Microwave Communications

Prepared by: Prof.Altan M. Ferendeci

Impedance Measurement Using VSWR Meter

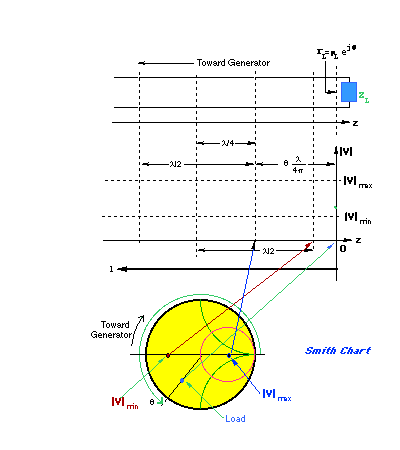

For a given arbitrary load impedance Z_L=R_L+jX_L, animation showing the changes in

• the voltage magnitude and
• the loaction of the impedance on the Smith Chart

as a function of transmission line length.

Copyright: A.M.Ferendeci, ECECS Dept.University of Cincinnati
