A two port network has the following S parameters when the measurements are made at the terminal planes t₁ and t₂.

1. Find whether the network is lossless or not.
2. If the terminal plane of the output port is moved from t₂ to t₃ over a length of b₂d₂=145^o, find the new scattering matrix with regards to the teminal planes t₁ and t₃.

1. Solution I:

   The [S] matrix has to satisfy the unitary condition, that is:



   Applying these to the given [S] parameters (first equation)



   Also (second equation)



   Neither equation is satisfied. Therefore: the network is lossy (First equation would have been sufficient since it did not satisfy the Unitary condition to start with.)

   ---

2. Solution II:


   In order to find the new scattering matrix we have to use the transformation matrix (minus sign is for outward displacement of the ports)



   For the given problem since only t₂ is moved to t₃, d₁=0, we set e^-jb₁d₁=1. Using the transformation procedure, we find

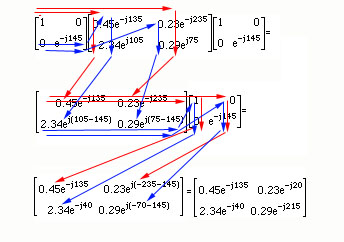

   Note: the arrows show the steps in following the matrix multiplications.
   As expected: S₁₁ did not change. Phases of S₁₂ and S₂₁ have changed by 145^o and the phase of S₂₂ has changed by 2(145^o)
