Impedance Concepts in Microwave Frequencies
N-Port networks
Prepared by: Prof.Altan M. Ferendeci

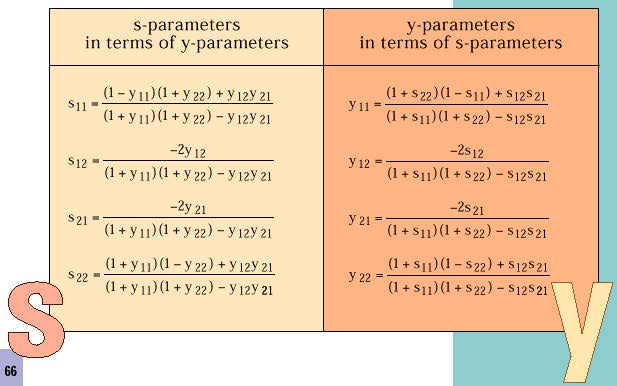

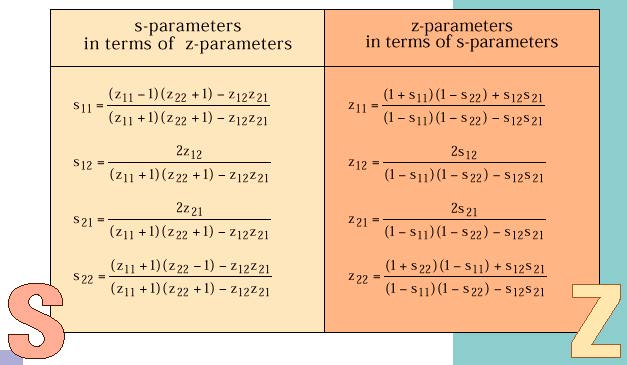

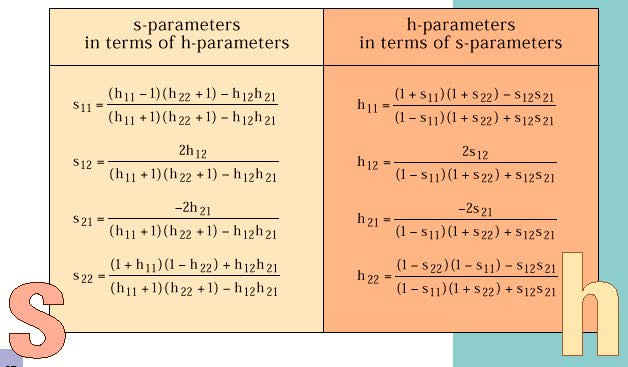

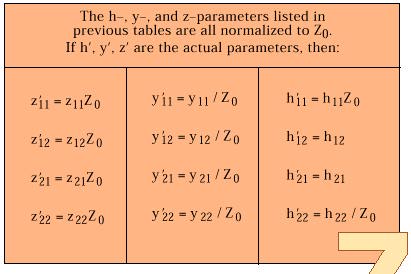

Conversion Relations Between Various Network Representations

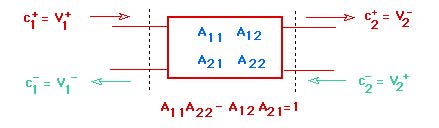

Wave-Amplitude Transmission Matrix [A]
Conversion from[S] Matrix
Two Networks in Cascade
Twp Networks in Series
Two networks in parallel
