The following steps are to be followed:

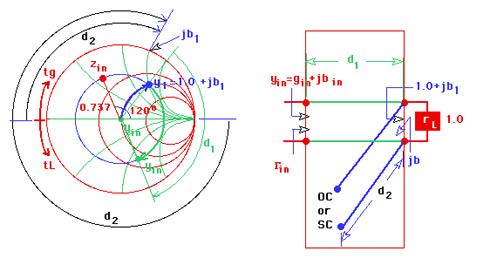

• Locate the given load (impedance, admittance or reflection coefficient) on the Smith chart.
• Go to admittance chart
• Draw a circle with a radius equal to |G_in|(constant reflection coefficent circle).

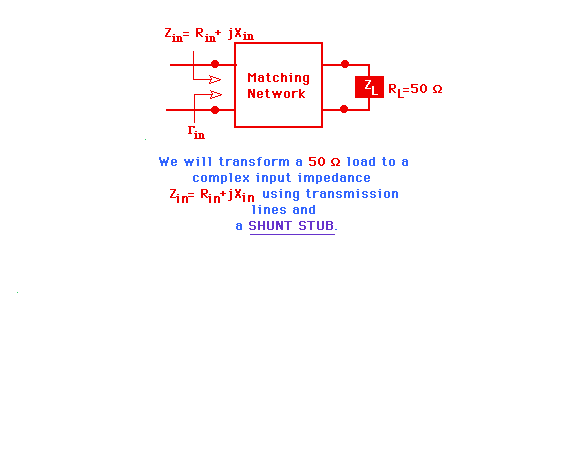

• Move on the constant g=1.0 circle by adding a parallel susceptance jb (or -jb) to the 50 W load.
• Move on the constant |G_in| circle toward the generator until you intersect y_in. This is the length of the transmission line d₁.
• Replace jb (or -jb) by an open-circuited or short-circuited shunt transmission line.
• Find the length d₂ of the transmission line which will generate jb (or -jb).

The following step by step procedure will guide you through this matching process.
