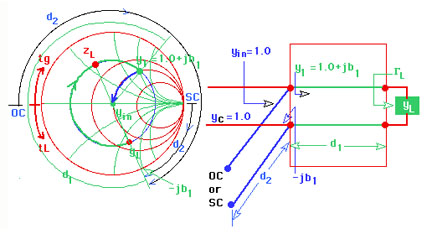

The following steps are to be followed:

• Locate the given load (impedance, admittance or reflection coefficient) on the Smith chart.
• Go to admittance chart
• Draw a circle with a radius equal to |G_L|(constant reflection coefficent circle).
• Move toward the generator until g=1+jb circle is intersected. This is the length of the transmission line d₁.
• Add a parallel susceptance equal to -jb.
• Replace this with an open-circuited or short-circuited transmission line.
• Find the length d₂ of the transmission line which will generate -jb.

The following step by step procedure will guide you through this matching process.
