Combined Impedance and Admittance Chart

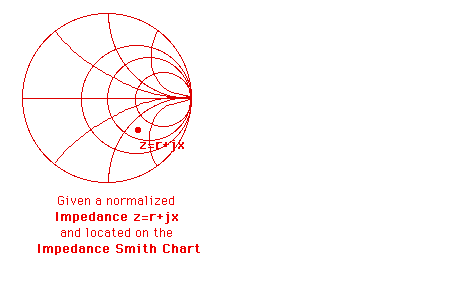

Instead of going back and forth from impedances to admittances back to impedances on a single Smith Chart, the two can be combined into one single chart by flipping aand rotating a copy of the Smith chart and placing it on the Smith chart as shown in the animation below.

The Impedances and Admittances can then be read from the same point.
