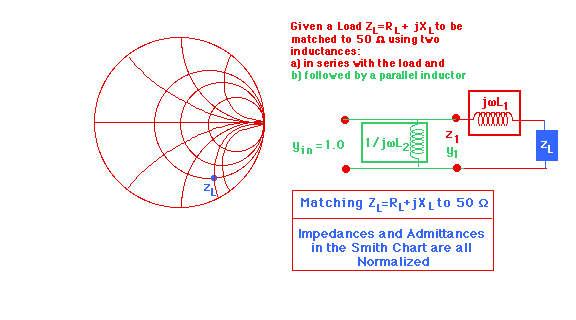

An example of using lumped elements is given below. In this example, a complex load ZL=RL+jXL is matched to a 50 W line using a series inductance and then a parallel inductance. Only a single Smith chart is used.

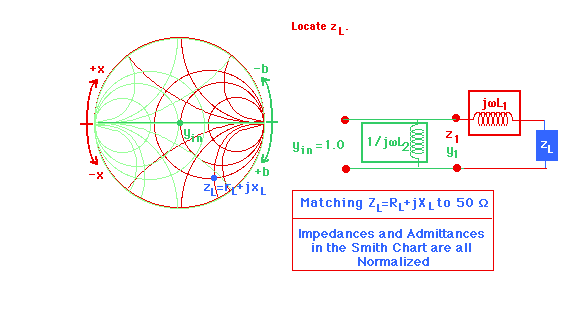

The same solution is repeated below using the combined Admittance-Impedance chart.
